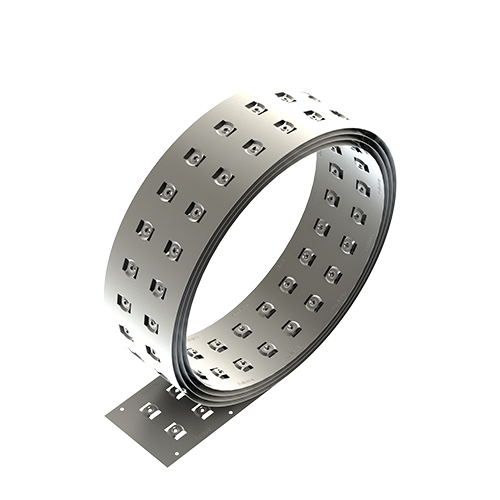

150mm Rollatray 15m Roll

150mm Rollatray 15m Roll

Rollatray is a new cable management system from Demon Cato that's ideal for the quick installation of cables to any solid surface. Due to the flexible nature of Rollatray it's extremely easy to install, allowing the transition from a vertical surface to a horizontal surface without the need for risers. Available in a 15m coil of 150mm, 300mm and 450mm wide pre galvanised steel, it can be easily cut to the desired length, with any unused product coiled up again for use on a later job. Frequently spaced fixing points allow cables to be quickly secured to the Rollatray with either nylon or stainless steel cable ties. Predrilled 6mm holes allow the Rollatray to be securely fastened to a wall, ceiling or floor. The unique design allows crossovers and tees to be formed simply by crossing over two lengths of Rollatray and they can be held in together with an M6 roofing bolt, no need for the nut, simply drive the screw into the ready formed hole.

Dramatically reduces cable installation time in underfloor commercial and data centre applications

• No couplers or brackets required.
• 15 Metre coils can be rolled out in 15 seconds.
• Simple bends, tees and 4-ways.
• Flexible fixing arrangement

Offers over 90% labour saving

Simply cross over units and secure with M6 screw

Flexible fixing arrangement with Rollatray’s innovative raised nipples and snail form thread
