Prysmian Compact Multi-Function Joint (CMJ) with: SE 2.2 Splice Tray; No Oval Port Kit; No Mechanical Glands; No Valve; No Bracket; No Splice Protectors

Prysmian Compact Multi-Function Joint (CMJ) with: SE 2.2 Splice Tray; No Oval Port Kit; No Mechanical Glands; No Valve; No Bracket; No Splice Protectors

The Compact Multi Function Joint (CMJ) is for jointing optical fibre cables. The joint is ideal for use as a Cable Chamber Joint, Track Joint, Spur Joint or Distribution Joint due to its capacity and compact size.

The Compact Multi Function Joint (CMJ) is for jointing optical fibre cables. The joint is ideal for use as a Cable Chamber Joint, Track Joint, Spur Joint or Distribution Joint due to its capacity and compact size. It has a maximum capacity of 144 fibres. The splice trays are factory fitted and each tray can accommodate up to 12 spliced fibres. A multi-functional bracket can be supplied with the joint which enables wall or pole mounting of the joint vertically or horizontally. The joint has four circular ports for mechanical entry glands, one oval port for heat shrink or mechanical entry and two additional small circular ports also for heat shrink entry.

Specification:

• Compact Joint: CMJ
• Tray: SE 2.2
• Oval: None
• Port 1: None
• Port 2: None
• Port 3: None
• Port 4: None
• Valve: No Valve
• Bracket: No Bracket
• Splice Protector: None

Kit Contents:

The CMJ is supplied with: -

• 1 x Base
• 1 x Cap
• 1 x Clamp
• 1 x O Seal
• 1 x Fibre Routing Manifold
• 2 x Tube Retainer
• 4 x Tube Retainer Cover
• 1 x Loop Storage Basket
• 12 x SE or SC Trays
• 1 x Oval Port Entry Kit
• 4 x Circular Port Entry Kit
• 1 x Pressure Test Valve
• 1 x Pole / Wall Bracket

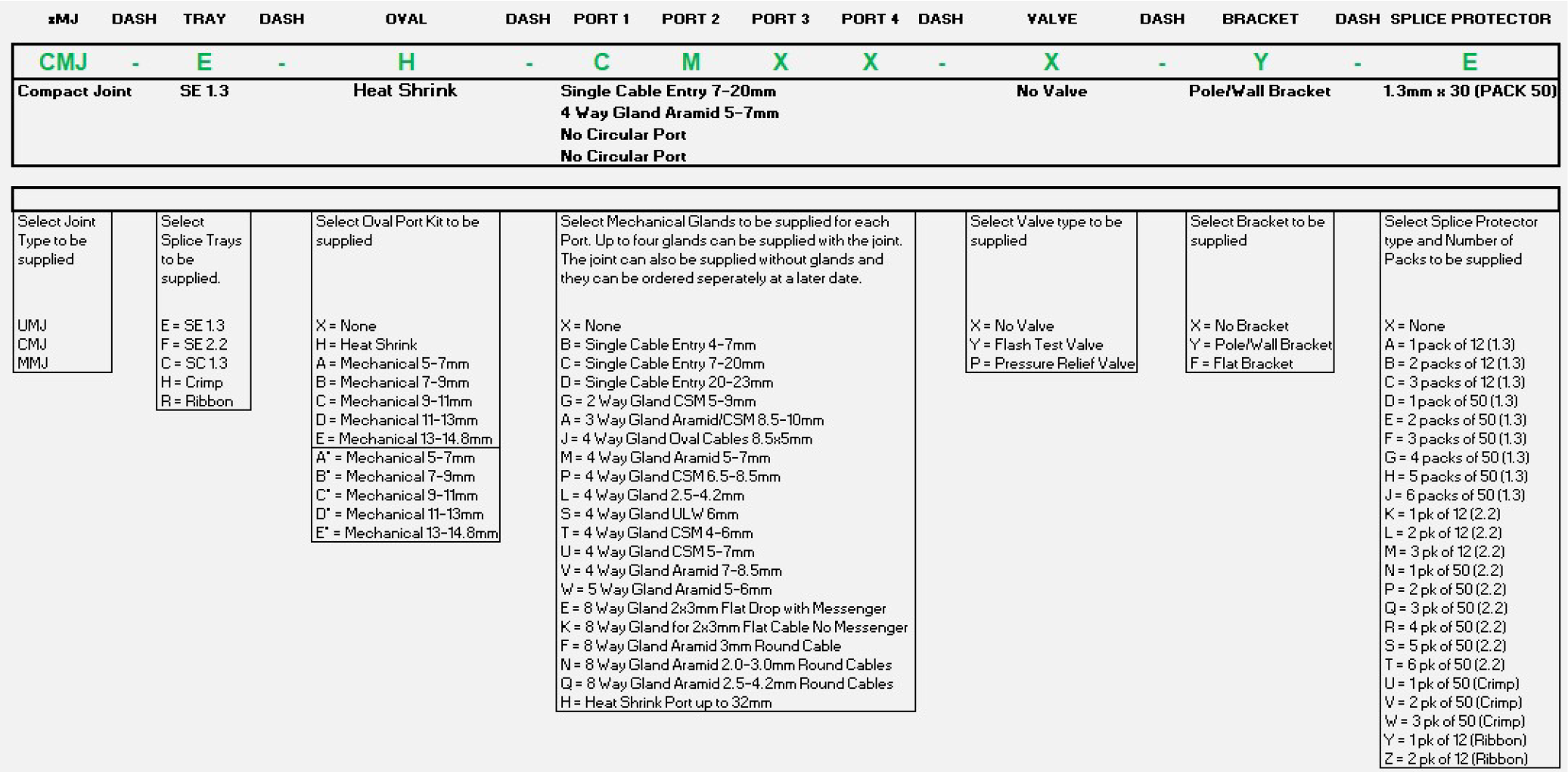

Part Number Generator - Please contact our sales team for other configurations
