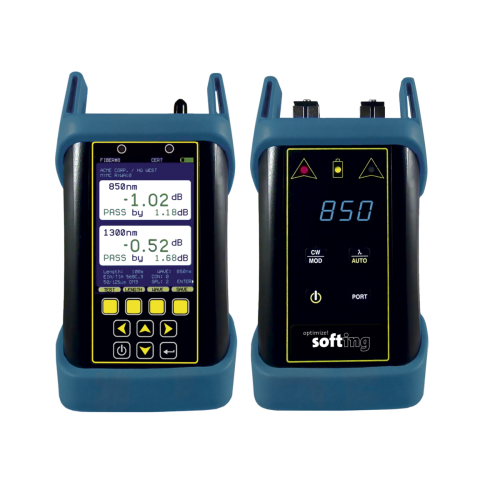

Softing FiberXpert 700 - Quad Attenuation Measurement Kit for Multimode & Singlemode

FiberXpert 700 - Quad Attenuation Measurement Kit for Multimode & Singlemode

The process of testing a network installation to ensure that it meets specified standards is called certification. This often requires paper documentation as proof of compliance with the standards. The FiberXpert 700 Quad MM/SM Test Kit contains the tools necessary to certify fibre connections to a variety of common cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.

The calibrated measurement kit can be used to perform standardised link certifications for multimode and singlemode fibre links and print the official test reports directly from the PC software. For the tests, the user has an unlimited number of configurations for different scenarios. Automatic wavelength detection and data storage ensure that testing is completed in the shortest possible time while eliminating the risk of operator error. The results of the measurements can be stored directly in the internal memory, up to 10,000 measurements.

The FiberXpert 700 Quad MM/SM Test Kit is also characterised by simple operation and user-friendly features. This already starts with the set-up process, which is supported by a link wizard with helpful graphics on the screen. For quick differentiation, the result is displayed directly on the colour LCD as PASS / FAIL status based on the colour. The kit also has a rechargeable lithium polymer battery.

• Complete Tier 1 fibre optic measurement
• Colour LCD shows PASS / FAIL status
• Up to 10,000 readings can be stored in internal memory
• Prints official test reports via PC software

Applications

• Complete Tier 1 fibre optic link measurement
• Optical loss (attenuation) measurement
• Optical power measurement
• Continuity testing
• Measuring cable / reference fibre test

Special Characteristics

• Standardised link certification for multimode and singlemode fibre connections
• Colour LCD indicates PASS / FAIL status by colour
• Unlimited number of configurations for different scenarios
• Prints official test reports via PC software
• Rechargeable lithium-polymer battery
• Calibrated measuring kit

Your Benefit

• User-friendly link wizard with helpful on-screen graphics to assist in the set-up process
• Automatic wavelength detection and data storage reduces test time and operator errors
• Up to 10,000 readings can be stored in internal memory

What you get

• 1 optical Power Meter
• 1 quad light source
• 1 soft carrying case
• 2 protective rubber boots
• 2 USB download cables (also for Battery Charge)
• 1 USB flash drive containing Reporter software and product documentation
• 1 connection adapter 1.25mm ferrule for LC connector
• 1 connection adapter 2.5mm ferrule for SC/ST/FC connectors
• 1 NIST calibration certificate
• 1 quick reference guide
